CONNECTING ROD RMZ450, PSYCHIC MX-09016 SUZUKI MX

Description

CONNECTING ROD REBUILD CONROD KIT PSYCHIC MX-09016

SUZUKI
RM-Z450 RMZ450 2005-2007,
RM-Z450 RMZ450 2013-2020,

– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,

Technical Specifications:
Big End Bearing (mm): 34x42x19.7
Big End Bore (mm): 42.00
Big End Width (mm): 19.75
Center To Center (mm): 106.10mm
Pin Diameter (mm): 34.00
Pin Length (mm): 60.80
Small End Bearing (mm): No Bushing
Small End Bore (mm): 19.00
Small End Width (mm): 16.50

Part No. 56-136.PS(oro2u.com)

Cross reference numbers ONLY.

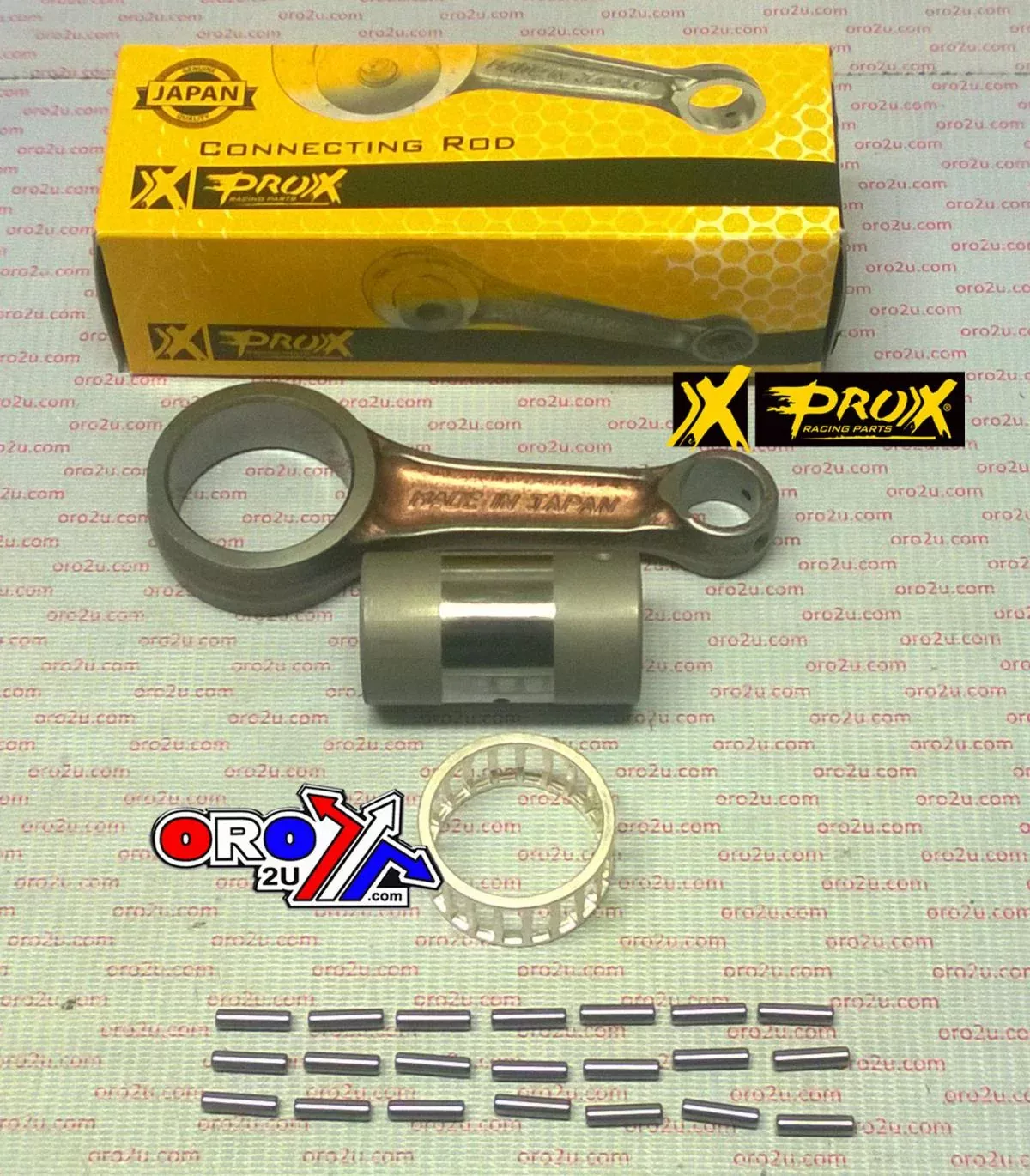

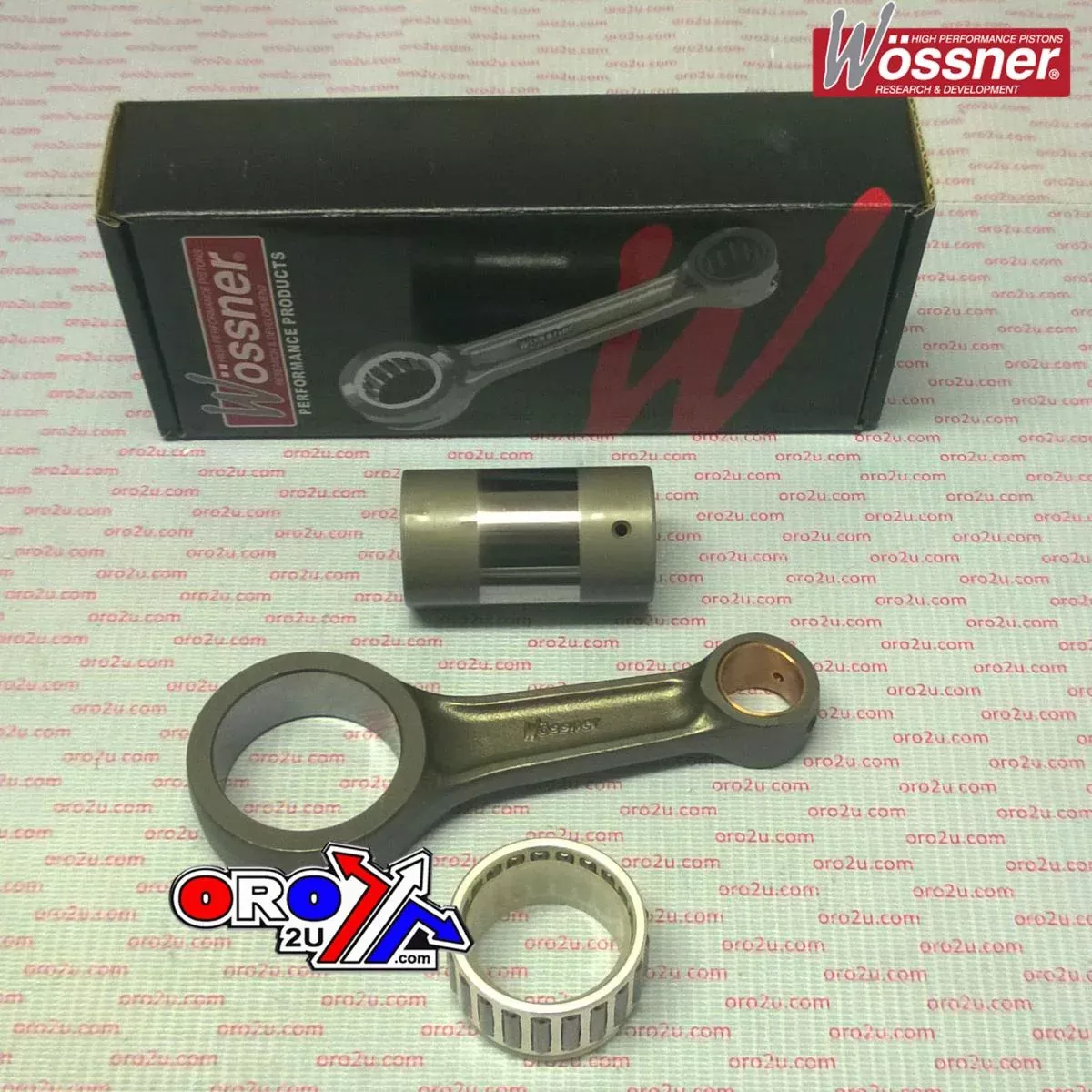

ATHENA P40321030, 12210-10H10 /12210-10H11, 09263-30060- 0B0, 12161-49H00-0B0, HR008661, HOTRODS 8661,PROX 03.3405, PSYCHIC MX-09016, ATHENA P40321030, 12161-35G00-0B0, 12161-35G01-0B0, WOSSNER P4012, WISECO, HOTRODS 8647,
