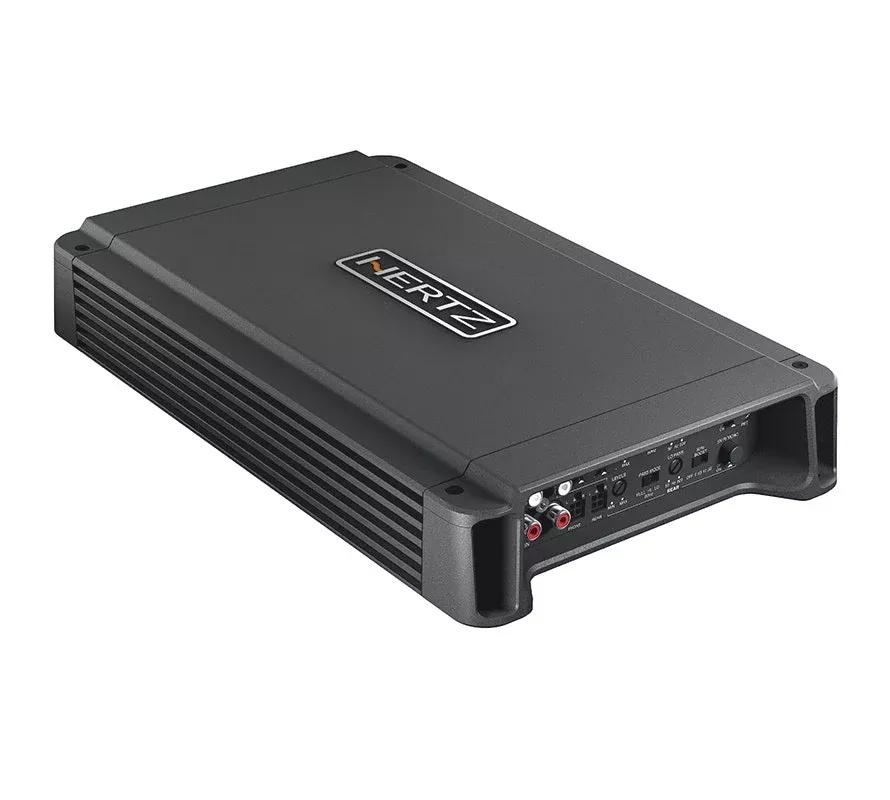

Hertz Compact Power HCP 4DK High Power D-Class Four Channel Amplifier

Sale!
Hertz Compact Power HCP 4DK High Power D-Class Four Channel Amplifier

Hertz Compact Power HCP 4DK High Power D-Class Four Channel Amplifier

Original price was: $360.00.Current price is: $207.70.

72 in stock

SKU: HZ-HCP4DK Category:

Description

The new HCP 4DK features latest generation D-Class 2? stable output stage reaching the impressive max power of 2000 W with the excellent S/N ratio of 105 dB. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.

Fits:

Channel mode 4 – 3 – 2
Output Power (RMS)
@ 14.4 VDC		 4 Ch: 150 W x 4 (4 Ω)
4 Ch: 250 W x 1 (2 Ω)
3 Ch: 150 W x 2 (4 Ω) + 520 W x 1 (4 Ω)
3 Ch: 250 W x 2 (2 Ω) + 520 W x 1 (4 Ω)
2 Ch: 520 W x 2 (4 Ω)
Filters
Bypass
Hi-Pass
Lo-Pass
Band-Pass
Subsonic		 Yes
A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
–
No
Distortion – THD
(100Hz @ 4Ω)		 0.03%
S/N Ratio
(A weighted @ 1V)		 105 dB
Damping factor
(100Hz @ 4Ω)		 200
Size W x D x H
mm (in.)		 315 x 190 x 50 (12.40 x 7.48 x 1.97)
